Monitoring using Prometheus

Example prometheus.yml

lakeFS exposes metrics through the same port used by the lakeFS service, using the standard /metrics path.

An example could look like this:

prometheus.yml

scrape_configs:
- job_name: lakeFS
  scrape_interval: 10s
  metrics_path: /metrics
  static_configs:
  - targets:
    - lakefs.example.com:8000

Metrics exposed by lakeFS

By default, Prometheus exports metrics with OS process information like memory and CPU. It also includes Go-specific metrics such as details about GC and a number of goroutines. You can learn about these default metrics in this post.

In addition, lakeFS exposes the following metrics to help monitor your deployment:

Name in Prometheus	Description	Labels
api_requests_total	lakeFS API requests (counter)	code: http status method: http method
api_request_duration_seconds	Durations of lakeFS API requests (histogram)	operation: name of API operation code: http status
gateway_request_duration_seconds	lakeFS S3-compatible endpoint request (histogram)	operation: name of gateway operation code: http status
s3_operation_duration_seconds	Outgoing S3 operations (histogram)	operation: operation name error: "true" if error, "false" otherwise
gs_operation_duration_seconds	Outgoing Google Storage operations (histogram)	operation: operation name error: "true" if error, "false" otherwise
azure_operation_duration_seconds	Outgoing Azure storage operations (histogram)	operation: operation name error: "true" if error, "false" otherwise
kv_request_duration_seconds	Durations of KV requests(histogram)	operation: name of KV operation type: KV type(dynamodb, postgres, etc)
dynamo_request_duration_seconds	Time spent doing DynamoDB requests	operation: DynamoDB operation name
dynamo_consumed_capacity_total	The capacity units consumed by operation	operation: DynamoDB operation name
dynamo_failures_total	The total number of errors while working for kv store	operation: DynamoDB operation name
pgxpool_acquire_count	PostgreSQL cumulative count of successful acquires from the pool	db_name default to the kv table name (kv)
pgxpool_acquire_duration_ns	PostgreSQL total duration of all successful acquires from the pool in nanoseconds	db_name default to the kv table name (kv)
pgxpool_acquired_conns	PostgreSQL number of currently acquired connections in the pool	db_name default to the kv table name (kv)
pgxpool_canceled_acquire_count	PostgreSQL cumulative count of acquires from the pool that were canceled by a context	db_name default to the kv table name (kv)
pgxpool_constructing_conns	PostgreSQL number of conns with construction in progress in the pool	db_name default to the kv table name (kv)
pgxpool_empty_acquire	PostgreSQL cumulative count of successful acquires from the pool that waited for a resource to be released or constructed because the pool was empty	db_name default to the kv table name (kv)
pgxpool_idle_conns	PostgreSQL number of currently idle conns in the pool	db_name default to the kv table name (kv)
pgxpool_max_conns	PostgreSQL maximum size of the pool	db_name default to the kv table name (kv)
pgxpool_total_conns	PostgreSQL total number of resources currently in the pool	db_name default to the kv table name (kv)

Example queries

Note

when using Prometheus functions like rate or increase, results are extrapolated and may not be exact.

99th percentile of API request latencies

```

sum by (operation)(histogram_quantile(0.99, rate(api_request_duration_seconds_bucket[1m]))) ```

50th percentile of S3-compatible API latencies

sum by (operation)(histogram_quantile(0.5, rate(gateway_request_duration_seconds_bucket[1m])))

Number of errors in outgoing S3 requests

sum by (operation) (increase(s3_operation_duration_seconds_count{error="true"}[1m]))

Number of open connections to the database

go_sql_stats_connections_open

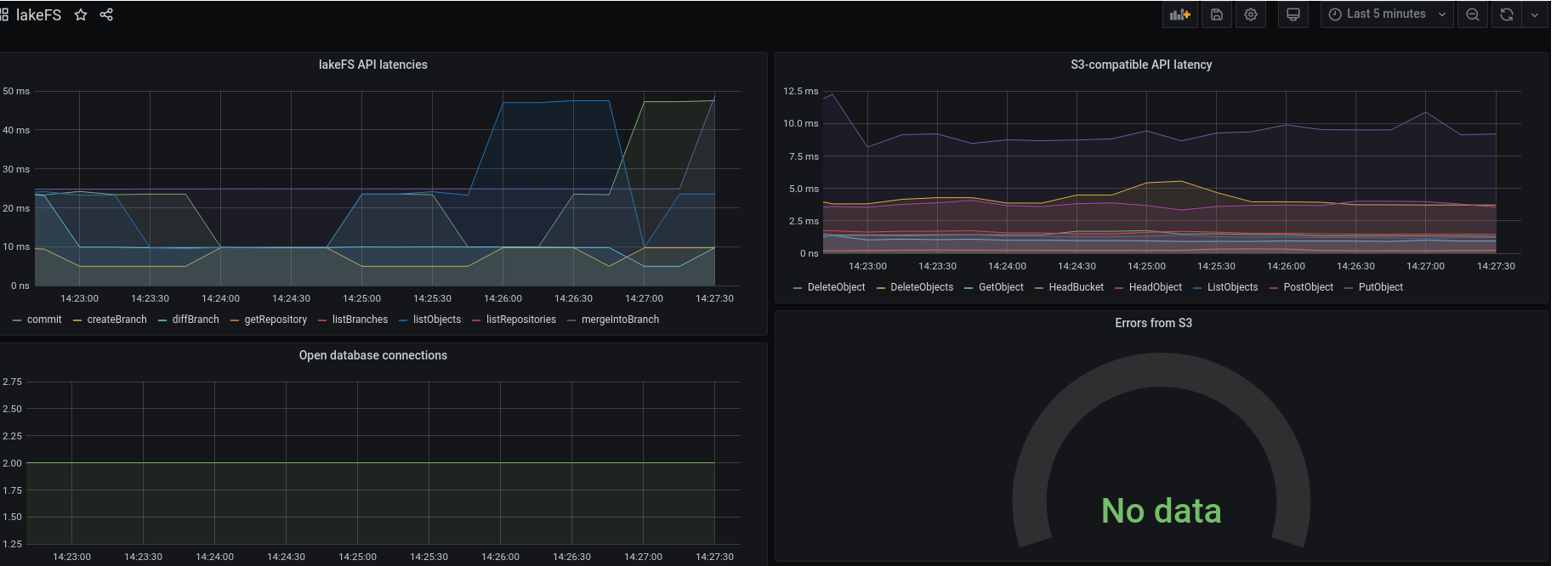

Example Grafana dashboard
