Configurable Hooks

Like other version control systems, lakeFS allows the configuration of Actions to trigger when predefined events occur.

Supported Events:

1. pre_commit - Action runs when the commit occurs, before the commit is finalized.
2. post_commit - Action runs after the commit is finalized.
3. pre_merge - Action runs when the merge occurs, before the merge is finalized.
4. post_merge - Action runs after the merge is finalized.

lakeFS Actions are handled per repository and cannot be shared between repositories. Failure of any Hook under any Action of a pre_* event will result in aborting the lakeFS operation that is taking place. On the contrary, Hook failures under any Action of a post_* event will not affect the same operation.

Hooks are managed by Action files that are written to a prefix in the lakeFS repository. This allows configuration-as-code inside lakeFS, where Action files are declarative and written in YAML.

Example use-cases

1. Format Validator: A webhook that checks new files to ensure they are of a set of allowed data format.
2. Schema Validator: A webhook that reads new Parquet and ORC files to ensure they don’t contain a block list of column names (or name prefixes). This is useful when we want to avoid accidental PII exposure.

For more examples and configuration samples, check out lakeFS-hooks example repo.

Terminology

Action

An Action is a list of Hooks with the same trigger configuration, i.e. an event will trigger all Hooks under an Action, or none at all. The Hooks under an Action are ordered and so is their execution. A Hook will only be executed if all previous Hooks that were triggered with it, had passed.

Hook

A Hook is the basic building block of an Action. Failure of a single Hook will stop the execution of the containing Action and fail the Run.

Action file

Schema of the Action file:

Example:

name: Good files check
description: set of checks to verify that branch is good
on:
  pre-commit:
  pre-merge:
    branches:
      - main
hooks:
  - id: no_temp
    type: webhook
    description: checking no temporary files found
    properties:
      url: "https://your.domain.io/webhook?notmp=true?t=1za2PbkZK1bd4prMuTDr6BeEQwWYcX2R"
  - id: no_freeze
    type: webhook
    description: check production is not in dev freeze
    properties:
      url: "https://your.domain.io/webhook?nofreeze=true?t=1za2PbkZK1bd4prMuTDr6BeEQwWYcX2R"

Note: lakeFS will validate action files only when an Event occurred.
Use lakectl actions validate <path> to validate your action files locally.

Run

A Run is an instantiation of the repository’s Action files when the triggering event occurs. For example, if our repository contains a pre-commit hook, every commit would generate a Run for that specific commit.

lakeFS will fetch, parse and filter the repository Action files and start to execute the Hooks under each Action. All executed Hooks (each with hook_run_id) exists in the context of that Run (run_id).

Uploading Action files

Action files should be uploaded with the prefix _lakefs_actions/ to the lakeFS repository. When an actionable event (see Supported Events above) takes place, lakeFS will read all files with prefix _lakefs_actions/ in the repository branch where the action occurred. A failure to parse an Action file will result with a failing Run.

For example, lakeFS will search and execute all matching Action files with the prefix lakefs://repo1/feature-1/_lakefs_actions/ on:

1. Commit to feature-1 branch on repo1 repository.
2. Merge to main branch from feature-1 branch on repo1 repository.

Runs API & CLI

OpenAPI endpoint and lakectl expose the results of Runs execution per repository, branch, commit and specific Action. The endpoint also allows to download the execution log of any executed Hook under each Run for observability.

Result Files

There are 2 types of files that are stored in the metadata section of lakeFS repository with each Run:

1. _lakefs/actions/log/<runID>/<hookRunID>.log - Execution log of the specific Hook run.
2. _lakefs/actions/log/<runID>/run.manifest - Manifest with all Hooks execution for the run with their results and additional metadata.

Note: Metadata section of a lakeFS repository is where lakeFS keeps its metadata, like commits and metaranges. Metadata files stored in the metadata section aren’t accessible like user stored files.

Hook types

Currently, there are two types of Hooks that are supported by lakeFS: Webhook and Airflow.

Webhooks

A Webhook is a Hook type that sends an HTTP POST request to the configured URL. Any non 2XX response by the responding endpoint will fail the Hook, cancel the execution of the following Hooks under the same Action. For pre_* hooks, the triggering operation (commit/merge) will also be aborted.

Warning: You should not use pre_* webhooks for long-running tasks, since they block the performed operation. Moreover, the branch is locked during the execution of pre_* hooks, so the webhook server cannot perform any write operations (like uploading or commits) on the branch.

Action file Webhook properties

Secrets & Environment Variables
lakeFS Actions supports secrets by using environment variables. The following format {{ ENV.SOME_ENV_VAR }} will be replaced with the value of SOME_ENV_VAR during the execution of the action. If that environment variable doesn’t exist in the lakeFS server environment, the action run will fail.

Example:

...
hooks:
  - id: prevent_user_columns
    type: webhook
    description: Ensure no user_* columns under public/
    properties:
      url: "http://<host:port>/webhooks/schema"
      timeout: 1m30s
      query_params:
        disallow: ["user_", "private_"]
        prefix: public/
      headers:
        secret_header: "{{ ENV.MY_SECRET }}"
...

Request body schema

Upon execution, a webhook will send a request containing a JSON object with the following fields:

Example:

{
  "event_type": "pre-merge",
  "event_time": "2021-02-28T14:03:31Z",
  "action_name": "test action",
  "hook_id": "prevent_user_columns",
  "repository_id": "repo1",
  "branch_id": "feature-1",
  "source_ref": "feature-1",
  "commit_message": "merge commit message",
  "committer": "committer",
  "commit_metadata": {
    "key": "value"
  }
}

Airflow Hooks

Airflow Hook triggers a DAG run in an Airflow installation using Airflow’s REST API. The hook run succeeds if the DAG was triggered, and fails otherwise.

Action file Airflow hook properties

Example:

...
hooks:
  - id: trigger_my_dag
    type: airflow
    description: Trigger an example_dag
    properties:
       url: "http://localhost:8000"
       dag_id: "example_dag"
       username: "admin"
       password: "{{ ENV.AIRFLOW_SECRET }}"
       dag_conf:
          some: "additional_conf"
...

Hook Record in configuration field

lakeFS will add an entry to the Airflow request configuration property (conf) with the event that triggered the action.

The key of the record will be lakeFS_event and the value will match the one described here

Experimentation

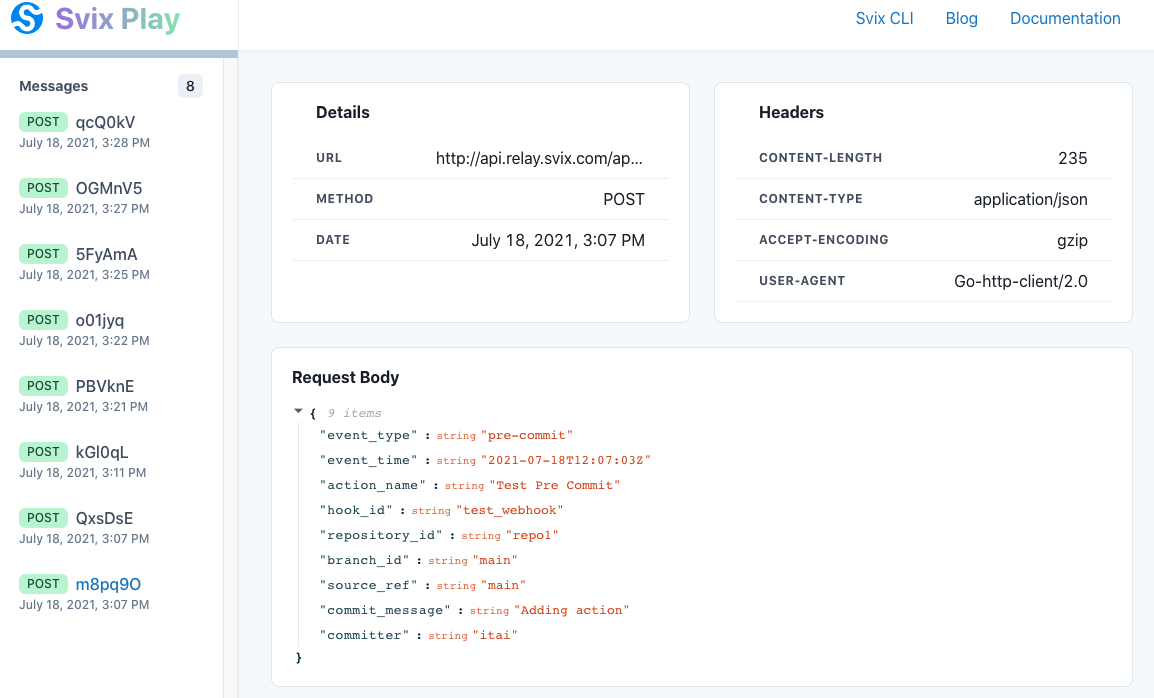

It’s sometimes easier to start experimenting with lakeFS webhooks, even before you have a running server to receive the calls. There are a couple of online tools that can intercept and display the webhook requests, one of them is Svix.

1. Go to play.svix.com and copy the URL address supplied by Svix. It should look like https://api.relay.svix.com/api/v1/play/receive/<Random_Gen_String>/

2. Upload the following action file to lakeFS under the path _lakefs_actions/test.yaml in the default branch:

   name: Sending everything to Svix
   description: Experimenting with webhooks
   on:
      pre-commit:
         branches:
      pre-merge:
         branches:
      post-commit:
         branches:
      post-merge:
         branches:
   hooks:
      - id: svix
        type: webhook
        properties:
           url: "https://api.relay.svix.com/api/v1/play/receive/<Random_Gen_String>/"


   by using:

      lakectl fs upload lakefs://example-repo/main/_lakefs_actions/test.yaml -s path/to/action/file


   or the UI.

3. Commit that file to the branch.

      lakectl commit lakefs://example-repo/main -m 'added webhook action file'


4. Every time you commit or merge to a branch, the relevant pre_* and post_* requests will be available in the Svix endpoint you provided. You can also check the Actions tab in the lakeFS UI for more details.
