Using lakeFS with Spark

Apache Spark is a multi-language engine for executing data engineering, data science, and machine learning on single-node machines or clusters

Note In all of the following examples, we set AWS and lakeFS credentials at runtime for clarity. In production, properties defining AWS credentials should be set using one of Hadoop’s standard ways of authenticating with S3. Similarly, properties defining lakeFS credentials should be configured in secure site files, not on the command line or inlined in code where they might be exposed.

Two-tiered Spark support

lakeFS support in Spark has two tiers:

Using the S3A gateway is easier to configure and may be more suitable for legacy or small-scale applications. Using the lakeFS FileSystem requires a somewhat more complex configuration, but offers greatly increased performance.

Access lakeFS using the S3A gateway

To use this mode you configure the Spark application to use S3A using the S3-compatible endpoint that the lakeFS server provides. Accordingly, all data flows through the lakeFS server.

Accessing data in lakeFS from Spark is the same as accessing S3 data from Spark. The only changes you need to consider are:

  1. Setting the configurations to access lakeFS,
  2. Accessing objects using the lakeFS S3 path convention.

Configuration

To configure Spark to work with lakeFS, we set S3 Hadoop configuration to the lakeFS endpoint and credentials:

Hadoop Configuration Value
fs.s3a.access.key Set to the lakeFS access key
fs.s3a.secret.key Set to the lakeFS secret key
fs.s3a.endpoint Set to the lakeFS S3-compatible API endpoint
fs.s3a.path.style.access Set to true

Here is how to do it:

spark-shell --conf spark.hadoop.fs.s3a.access.key='AKIAlakefs12345EXAMPLE' \
              --conf spark.hadoop.fs.s3a.secret.key='abc/lakefs/1234567bPxRfiCYEXAMPLEKEY' \
              --conf spark.hadoop.fs.s3a.path.style.access=true \
              --conf spark.hadoop.fs.s3a.endpoint='https://lakefs.example.com' ...
spark.sparkContext.hadoopConfiguration.set("fs.s3a.access.key", "AKIAlakefs12345EXAMPLE")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.secret.key", "abc/lakefs/1234567bPxRfiCYEXAMPLEKEY")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.endpoint", "https://lakefs.example.com")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.path.style.access", "true")

Add these into a configuration file, e.g. $SPARK_HOME/conf/hdfs-site.xml:

<?xml version="1.0"?>
<configuration>
    <property>
        <name>fs.s3a.access.key</name>
        <value>AKIAlakefs12345EXAMPLE</value>
    </property>
    <property>
            <name>fs.s3a.secret.key</name>
            <value>abc/lakefs/1234567bPxRfiCYEXAMPLEKEY</value>
    </property>
    <property>
        <name>fs.s3a.endpoint</name>
        <value>https://lakefs.example.com</value>
    </property>
    <property>
        <name>fs.s3a.path.style.access</name>
        <value>true</value>
    </property>
</configuration>

Per-bucket configuration

The above configuration will use lakeFS as the sole S3 endpoint. To use lakeFS in parallel with S3, you can configure Spark to use lakeFS only for specific bucket names. For example, to configure only example-repo to use lakeFS, set the following configurations:

spark-shell --conf spark.hadoop.fs.s3a.bucket.example-repo.access.key='AKIAlakefs12345EXAMPLE' \
              --conf spark.hadoop.fs.s3a.bucket.example-repo.secret.key='abc/lakefs/1234567bPxRfiCYEXAMPLEKEY' \
              --conf spark.hadoop.fs.s3a.bucket.example-repo.endpoint='https://lakefs.example.com' \
              --conf spark.hadoop.fs.s3a.path.style.access=true
spark.sparkContext.hadoopConfiguration.set("fs.s3a.bucket.example-repo.access.key", "AKIAlakefs12345EXAMPLE")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.bucket.example-repo.secret.key", "abc/lakefs/1234567bPxRfiCYEXAMPLEKEY")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.bucket.example-repo.endpoint", "https://lakefs.example.com")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.path.style.access", "true")

Add these into a configuration file, e.g. $SPARK_HOME/conf/hdfs-site.xml:

<?xml version="1.0"?>
<configuration>
    <property>
        <name>fs.s3a.bucket.example-repo.access.key</name>
        <value>AKIAlakefs12345EXAMPLE</value>
    </property>
    <property>
        <name>fs.s3a.bucket.example-repo.secret.key</name>
        <value>abc/lakefs/1234567bPxRfiCYEXAMPLEKEY</value>
    </property>
    <property>
        <name>fs.s3a.bucket.example-repo.endpoint</name>
        <value>https://lakefs.example.com</value>
    </property>
    <property>
        <name>fs.s3a.path.style.access</name>
        <value>true</value>
    </property>
</configuration>

With this configuration set, you read S3A paths with example-repo as the bucket will use lakeFS, while all other buckets will use AWS S3.

Reading Data

To access objects in lakeFS, you need to use the lakeFS S3 gateway path conventions:

s3a://[REPOSITORY]/[BRANCH]/PATH/TO/OBJECT

Here is an example for reading a parquet file from lakeFS to a Spark DataFrame:

val repo = "example-repo"
val branch = "main"
val dataPath = s"s3a://${repo}/${branch}/example-path/example-file.parquet"

val df = spark.read.parquet(dataPath)

You can now use this DataFrame like you’d normally do.

Writing Data

Now simply write your results back to a lakeFS path:

df.write.partitionBy("example-column").parquet(s"s3a://${repo}/${branch}/output-path/")

The data is now created in lakeFS as new changes in your branch. You can now commit these changes or revert them.

Access lakeFS using the lakeFS-specific Hadoop FileSystem

To use this mode, you configure the Spark application to perform metadata operations on the lakeFS server and all data operations directly through the same underlying object store that lakeFS uses. The lakeFS FileSystem currently supports Spark with Hadoop Apache 2.7 using only the S3A Hadoop FileSystem for data access. In this mode, the Spark application will read and write directly from the underlying object store, significantly increasing application scalability and performance by reducing the load on the lakeFS server.

Accessing data in lakeFS from Spark is the same as accessing S3 data from Spark. The only changes you need to make are:

  1. Configure Spark to access lakeFS for metadata and S3 or a compatible underlying object store to access data,
  2. Use lakefs://repo/ref/path/to/data URIs to read and write data on lakeFS rather than s3a://... URIs.

Configuration

To configure Spark to work using the lakeFS Hadoop FileSystem, you will need to load the filesystem JARs and then configure both that FileSystem and the underlying data access FileSystem.

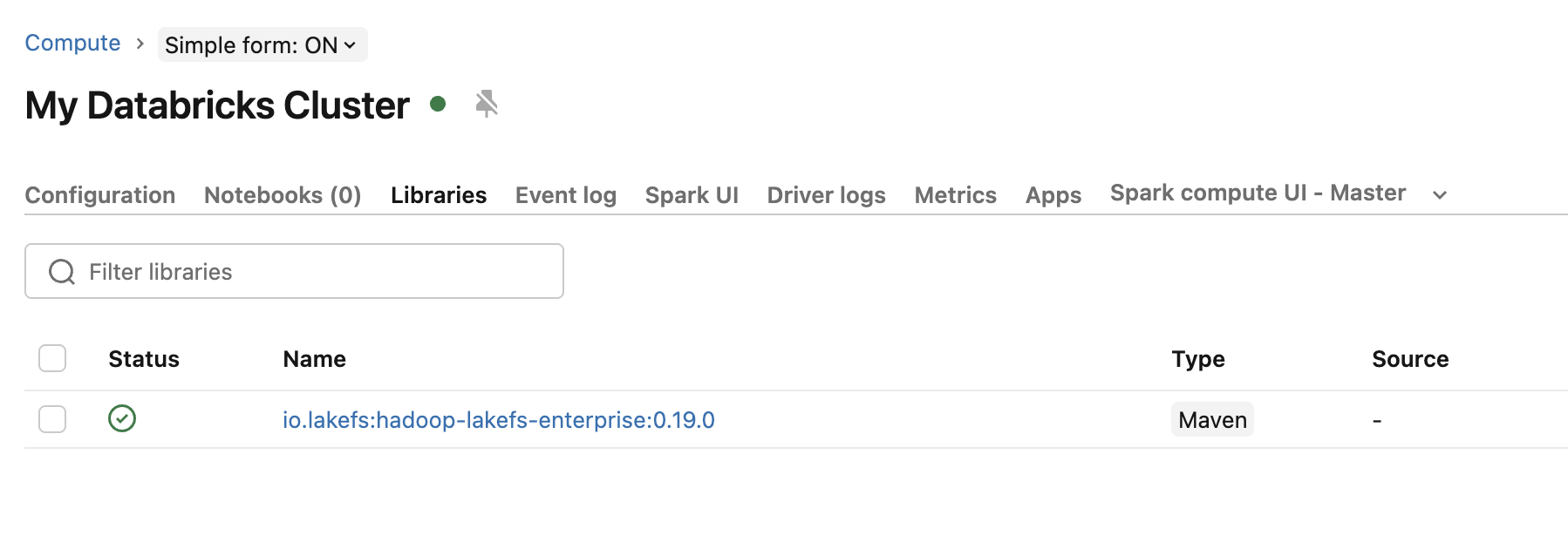

Load the FileSystem JARs

Add the package io.lakefs:hadoop-lakefs-assembly:<VERSION> to your Spark command:

--packages io.lakefs:hadoop-lakefs-assembly:0.1.6

The jar is also available on a public S3 location: s3://treeverse-clients-us-east/hadoop/hadoop-lakefs-assembly-0.1.6.jar

Configure the lakeFS FileSystem and the underlying S3A FileSystem

Add Hadoop configuration to the underlying storage and additionally to lakeFS credentials. When using this mode, do not set the S3A endpoint URL to point at lakeFS - it should point at the underlying storage.

Hadoop Configuration Value
fs.s3a.access.key Set to the AWS S3 access key
fs.s3a.secret.key Set to the AWS S3 secret key
fs.s3a.endpoint Set to the AWS S3-compatible endpoint
fs.lakefs.impl io.lakefs.LakeFSFileSystem
fs.lakefs.access.key Set to the lakeFS access key
fs.lakefs.secret.key Set to the lakeFS secret key
fs.lakefs.endpoint Set to the lakeFS API URL

When using AWS S3 itself, the default configuration works with us-east-1, so you may still need to configure fs.s3a.endpoint. Amazon provides S3 endpoints you can use.

Note: The lakeFS Hadoop FileSystem uses the fs.s3a.* properties to directly access S3. If your cluster already has access to your buckets (for example, if you’re using an AWS instance profile), then you don’t need to configure these properties. permissions.

Here is how to do it:

spark-shell --conf spark.hadoop.fs.s3a.access.key='AKIAIOSFODNN7EXAMPLE' \
              --conf spark.hadoop.fs.s3a.secret.key='wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY' \
              --conf spark.hadoop.fs.s3a.endpoint='https://s3.eu-central-1.amazonaws.com' \
              --conf spark.hadoop.fs.lakefs.impl=io.lakefs.LakeFSFileSystem \
              --conf spark.hadoop.fs.lakefs.access.key=AKIAlakefs12345EXAMPLE \
              --conf spark.hadoop.fs.lakefs.secret.key=abc/lakefs/1234567bPxRfiCYEXAMPLEKEY \
              --conf spark.hadoop.fs.lakefs.endpoint=https://lakefs.example.com/api/v1 \
              --packages io.lakefs:hadoop-lakefs-assembly:0.1.6
              ...

Ensure you load the lakeFS FileSystem into Spark by running it with --packages or --jars, and then run:

spark.sparkContext.hadoopConfiguration.set("fs.s3a.access.key", "AKIAIOSFODNN7EXAMPLE")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.secret.key", "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY")
spark.sparkContext.hadoopConfiguration.set("fs.s3a.endpoint", "https://s3.eu-central-1.amazonaws.com")
spark.sparkContext.hadoopConfiguration.set("fs.lakefs.impl", "io.lakefs.LakeFSFileSystem")
spark.sparkContext.hadoopConfiguration.set("fs.lakefs.access.key", "AKIAlakefs12345EXAMPLE")
spark.sparkContext.hadoopConfiguration.set("fs.lakefs.secret.key", "abc/lakefs/1234567bPxRfiCYEXAMPLEKEY")
spark.sparkContext.hadoopConfiguration.set("fs.lakefs.endpoint", "https://lakefs.example.com/api/v1")

Make sure that you load the lakeFS FileSystem into Spark by running it with --packages or --jars, and then add these into a configuration file, e.g., $SPARK_HOME/conf/hdfs-site.xml:

<?xml version="1.0"?>
<configuration>
    <property>
        <name>fs.s3a.access.key</name>
        <value>AKIAIOSFODNN7EXAMPLE</value>
    </property>
    <property>
            <name>fs.s3a.secret.key</name>
            <value>wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY</value>
    </property>
    <property>
        <name>fs.s3a.endpoint</name>
        <value>https://s3.eu-central-1.amazonaws.com</value>
    </property>
    <property>
        <name>fs.lakefs.impl</name>
        <value>io.lakefs.LakeFSFileSystem</value>
    </property>
    <property>
        <name>fs.lakefs.access.key</name>
        <value>AKIAlakefs12345EXAMPLE</value>
    </property>
    <property>
        <name>fs.lakefs.secret.key</name>
        <value>abc/lakefs/1234567bPxRfiCYEXAMPLEKEY</value>
    </property>
    <property>
        <name>fs.lakefs.endpoint</name>
        <value>https://lakefs.example.com/api/v1</value>
    </property>
</configuration>

Per-bucket and per-repo configuration

As demonstrated above, S3 allows for per-bucket configuration. You can use this if:

  1. You need to use S3A directly to access data in an S3 outside of lakeFS, and
  2. different credentials are required to access data inside that bucket.

Refer to the Hadoop AWS guide Configuring different S3 buckets with Per-Bucket Configuration.

There’s no need for per-repo configurations in lakeFS when all repositories are on the same lakeFS server. If you need to access repositories located on multiple lakeFS servers, configure multiple prefixes. For instance, you might configure both fs.lakefs.impl and fs.lakefs2.impl to be io.lakefs.LakeFSFileSystem, place separate endpoints and credentials under fs.lakefs.* and fs.lakefs2.*, and access the two servers using lakefs://... and lakefs2://... URLs.

Reading Data

To access objects in lakeFS, you need to use the lakeFS path conventions:

lakefs://[REPOSITORY]/[BRANCH]/PATH/TO/OBJECT

Here’s an example for reading a parquet file from lakeFS to a Spark DataFrame:

val repo = "example-repo"
val branch = "main"
val dataPath = s"lakefs://${repo}/${branch}/example-path/example-file.parquet"

val df = spark.read.parquet(dataPath)

You can now use this DataFrame like you would normally do.

Writing Data

Now simply write your results back to a lakeFS path:

df.write.partitionBy("example-column").parquet(s"lakefs://${repo}/${branch}/output-path/")

The data is now created in lakeFS as new changes in your branch. You can now commit these changes or revert them.

Case Study: SimilarWeb

See how SimilarWeb is using lakeFS with Spark to manage algorithm changes in data pipelines.
